Roof scupper sizing involves calculating the required drainage capacity based on roof area, rainfall intensity, and scupper flow performance to safely manage extreme rain events. Proper sizing ensures excess water can exit the roof when primary drains fail, reducing the risk of ponding, structural overload, and code violations. Builders typically rely on rainfall data such as the 100-year, 15-minute storm, apply drainage formulas like the Rational Method, and follow standards such as ASCE 7 to balance flow capacity with required head pressure and overflow protection.
What is roof drainage capacity based on?
Roof drainage capacity is based on the total roof area, the intensity of local rainfall, the slope of the roof, and the ability of drains or scuppers to move water off the roof fast enough during extreme storm events.
What is a scupper drain?
A scupper drain is an opening placed through a parapet wall or roof edge that allows water to drain off a roof when water reaches a specific depth, often serving as secondary or emergency overflow drainage.
How to size roof scuppers?
Roof scuppers are sized by calculating the volume of water generated during a design storm and matching that flow to the scupper’s discharge capacity while accounting for head pressure and code-required safety factors.
How do you calculate roof drainage?
Roof drainage is calculated by multiplying roof area by rainfall intensity and adjusting for runoff coefficients, then verifying that drains or scuppers can handle that flow without allowing dangerous water accumulation.
Roof scupper sizing is a critical but often misunderstood aspect of commercial and multifamily roof design. When improperly sized, scuppers can allow water to accumulate faster than it can drain, leading to excessive ponding loads, structural stress, and costly construction defects. For builders and developers, incorrect drainage design is not just a performance issue but also a liability and inspection risk.
In high-rainfall regions like Florida and the Gulf Coast, intense storm events can overwhelm primary roof drains within minutes. Scuppers are frequently required as secondary drainage to prevent catastrophic water buildup when those primary systems clog or fail. Understanding how to correctly size roof scuppers is essential for meeting code requirements, protecting structural systems, and avoiding delays during inspections.
This guide walks through how roof scupper sizing works, the calculations involved, the role of rainfall intensity, and how builders can integrate compliant scupper design into production construction without overengineering or underdesigning drainage systems.

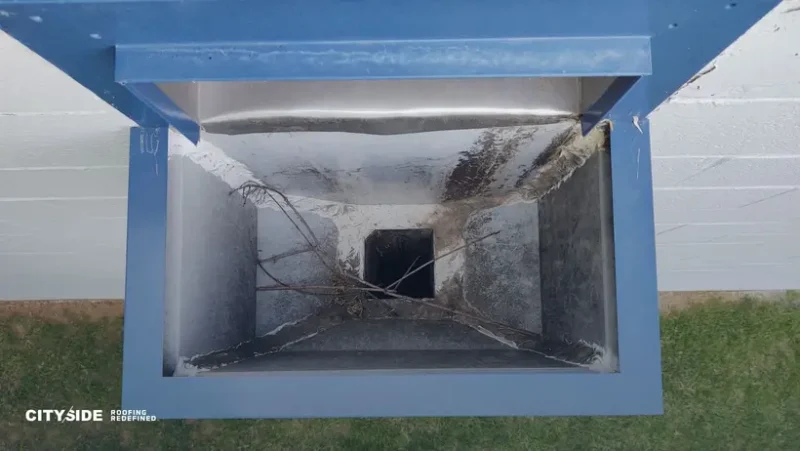

Why Roof Scupper Sizing Matters in Modern Construction
Roof scuppers are not decorative details. They are safety devices designed to protect the structure below. When rainfall exceeds the capacity of internal roof drains, scuppers provide an emergency release path for water before loads exceed design limits.
Improper roof scupper sizing can result in water depths that exceed structural design assumptions. Even a few inches of standing water across a large roof can add thousands of pounds of load. This increases the risk of deflection, membrane damage, and in extreme cases, roof collapse.
From a builder perspective, drainage failures often surface after occupancy, making them expensive warranty issues. Correct scupper sizing at the design stage helps prevent downstream problems that disrupt schedules, budgets, and client relationships.
What Is a Roof Scupper and How Does It Work?
A roof scupper is an opening through a parapet wall or roof edge that allows water to exit the roof horizontally. Unlike internal drains that rely on vertical piping systems, scuppers discharge water directly away from the building.
Scuppers are commonly used as secondary drainage systems. They activate only after water rises above the level of primary drains. This delayed engagement makes their sizing especially important because they must handle high flow rates quickly once engaged.
The effectiveness of a scupper depends on its opening dimensions, the depth of water at the opening, and the ability of downstream discharge paths to carry water away from the structure without obstruction.
Primary vs Secondary Roof Drainage Systems
Primary drainage systems are intended to handle routine rainfall. These include internal drains, gutters, and downspouts sized for frequent storm events. Secondary drainage systems, such as scuppers, are designed for extreme conditions.
Building codes often require secondary drainage to prevent water from rising above a specified depth. Scuppers are typically placed above the primary drain level so they only engage when water reaches a critical threshold.
Roof scupper sizing must assume that primary drains are fully blocked. This conservative assumption ensures that even in worst-case scenarios, water has a safe exit path.
Understanding Rainfall Intensity and Design Storms
Rainfall intensity is one of the most important inputs in roof scupper sizing. It represents how much rain falls over a given period, usually measured in inches per hour.
Most codes reference extreme storm events such as the 100-year, 15-minute rainfall. This does not mean such storms occur once every 100 years but rather that they have a one percent chance of occurring in any given year.
Designing scuppers for these events ensures roofs can handle short-duration, high-intensity rainfall that overwhelms conventional drainage systems.
Expert Insight on Overflow Drainage Requirements
According to guidance from the Federal Emergency Management Agency and the American Society of Civil Engineers, overflow drainage systems must be designed to prevent water accumulation that exceeds structural load limits during blocked drain conditions. ASCE 7 specifically addresses ponding instability and requires secondary drainage systems to activate before water reaches unsafe depths.
Source: https://www.asce.org
Roof Scupper Sizing Basics
Roof scupper sizing starts with determining how much water must be removed from the roof during a design storm. This is based on roof area and rainfall intensity.
For example, a 20,000 square foot roof experiencing a high-intensity storm will generate a significant volume of water in minutes. Scuppers must be large enough to discharge that volume without relying on primary drains.
Scupper size is typically expressed as an opening width and height. Larger openings allow more water to flow at lower head pressures, reducing the depth of ponded water on the roof.
Calculating Roof Drainage Using the Rational Method
One commonly used approach to roof drainage calculation is the Rational Method, expressed as Q = C × I × A.
Q represents flow rate.
C is the runoff coefficient, often assumed to be 1.0 for roofs.
I is rainfall intensity.
A is the roof area.
This calculation provides an estimate of how much water must be discharged during peak rainfall. Roof scupper sizing uses this value to ensure the combined scupper capacity exceeds Q under worst-case conditions.
Head Pressure and Its Impact on Scupper Performance
Head pressure refers to the depth of water above the scupper opening. As water depth increases, flow through the scupper increases.
However, relying on excessive head pressure is dangerous. Allowing water to rise too high before scuppers activate can overload the roof structure. Codes typically limit allowable water depth to protect structural integrity.
Proper roof scupper sizing balances opening size with acceptable head pressure so scuppers engage early and discharge efficiently.
Code Requirements Affecting Roof Scupper Sizing
Most building codes reference standards such as ASCE 7 for drainage design. These standards require secondary drainage systems to be independent of primary systems and capable of handling extreme rainfall.
Scuppers must be placed so water exits the roof before reaching unsafe depths. Their elevation, size, and discharge path must be coordinated with structural design assumptions.
Failure to meet these requirements can result in failed inspections and costly redesigns during construction.
Common Roof Scupper Sizing Mistakes
One common mistake is undersizing scuppers based on average rainfall instead of extreme events. Another is assuming multiple small scuppers perform the same as fewer properly sized openings without verifying total discharge capacity.
Improper placement is another issue. Scuppers located too high may never activate before dangerous ponding occurs. Scuppers placed without clear discharge paths can cause water to back up against the building.
Builders who treat scuppers as an afterthought often encounter drainage issues late in the project lifecycle.
Integrating Scupper Design Into Structural Planning
Roof scupper sizing should be coordinated with structural engineers early in the design process. Structural load assumptions, allowable deflection, and ponding limits must align with drainage performance.
This coordination ensures scuppers activate before water loads exceed design values. It also simplifies approvals and reduces the likelihood of late-stage revisions.
Early integration is especially important on large flat roofs common in multifamily and commercial construction.

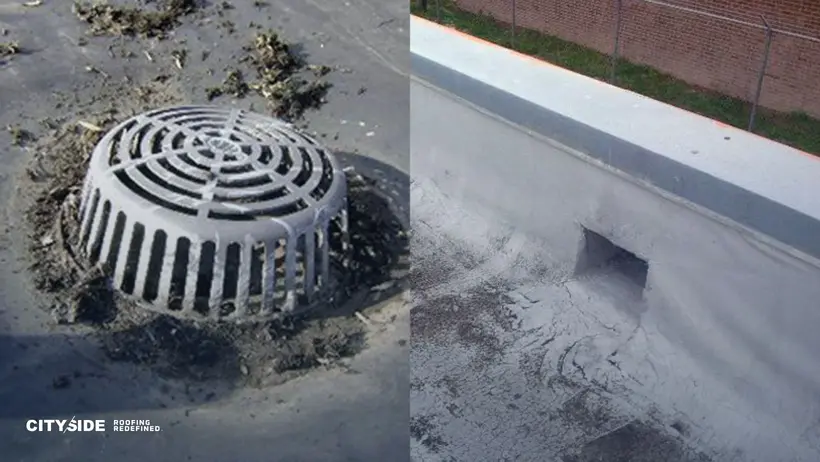

Scuppers vs Gutters and Internal Drains
Scuppers serve a different purpose than gutters or internal drains. Gutters handle runoff from sloped roofs. Internal drains manage routine drainage from flat roofs.
Scuppers are emergency devices. Their sizing must assume primary systems are compromised. Treating scuppers as decorative overflow features rather than engineered drainage elements undermines their purpose.
Builders should ensure scuppers are sized independently and not simply matched to gutter or drain dimensions.
Construction and Installation Considerations
Even correctly sized scuppers can fail if poorly installed. Improper flashing, inadequate membrane integration, or obstructed discharge paths can all reduce performance.
Scupper openings must remain clear throughout construction. Temporary protection should be removed before project closeout. Discharge areas must be graded to prevent water from flowing back toward the building.
Quality control during installation is just as important as correct sizing calculations.
Long-Term Risk Mitigation Through Proper Sizing
Roof scupper sizing directly affects long-term risk. Oversized scuppers rarely cause problems. Undersized scuppers often do.
From a builder risk perspective, properly sized scuppers reduce the likelihood of structural claims, water damage disputes, and emergency repairs after extreme weather events.
They also demonstrate compliance with modern drainage standards, supporting smoother inspections and stronger project documentation.
Conclusion
Roof scupper sizing is not a minor detail. It is a critical component of safe roof design that protects structures during extreme rainfall events. By calculating drainage capacity using roof area and rainfall intensity, accounting for head pressure, and following code requirements, builders can prevent dangerous ponding and long-term liability.
Correct scupper sizing ensures roofs perform as designed even when primary drainage fails. It supports structural safety, code compliance, and predictable project outcomes across all building types.
Key Takeaways
- Roof scupper sizing is based on roof area, rainfall intensity, and discharge capacity
- Scuppers serve as secondary drainage when primary drains fail
- Design storms such as the 100-year, 15-minute event are commonly used
- Proper sizing balances flow capacity with acceptable water depth
- Early coordination with structural design prevents drainage failures
For guidance on drainage design, scupper placement, and code-compliant roof systems in new construction, contact CitySide Roofing today.
